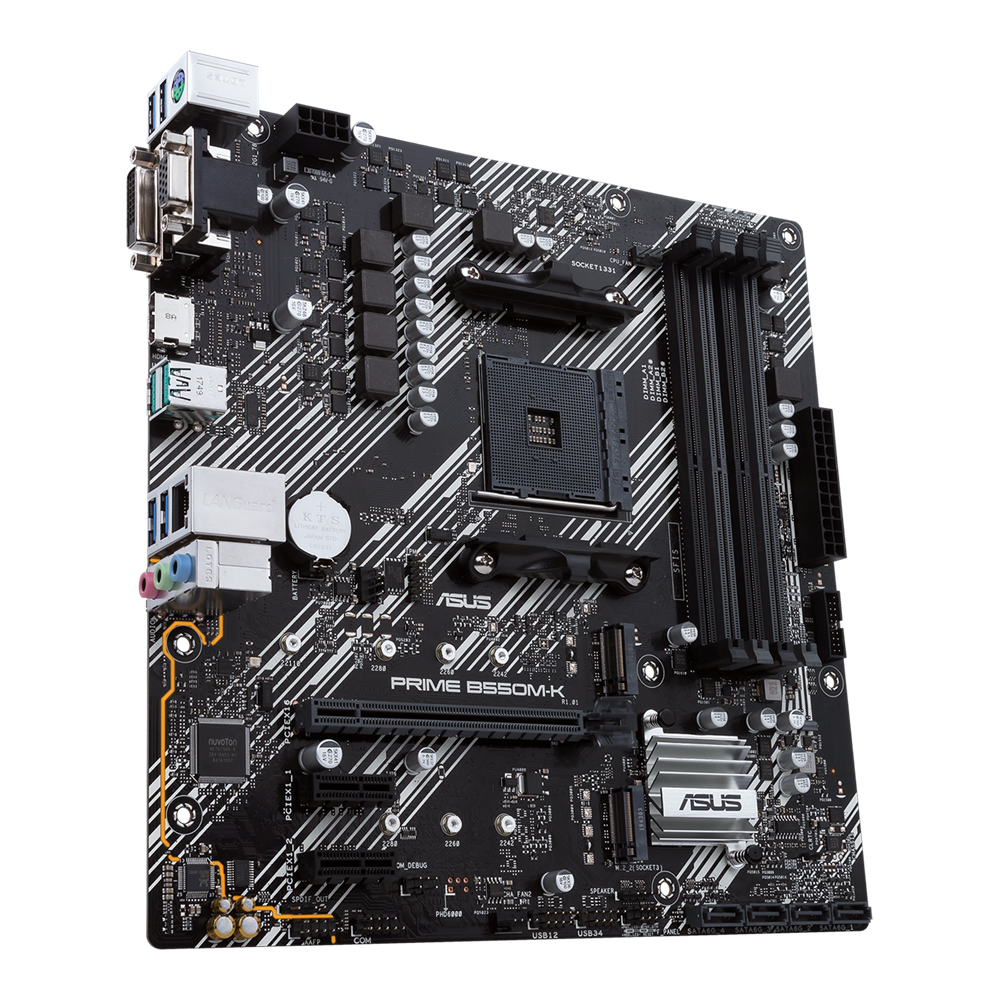

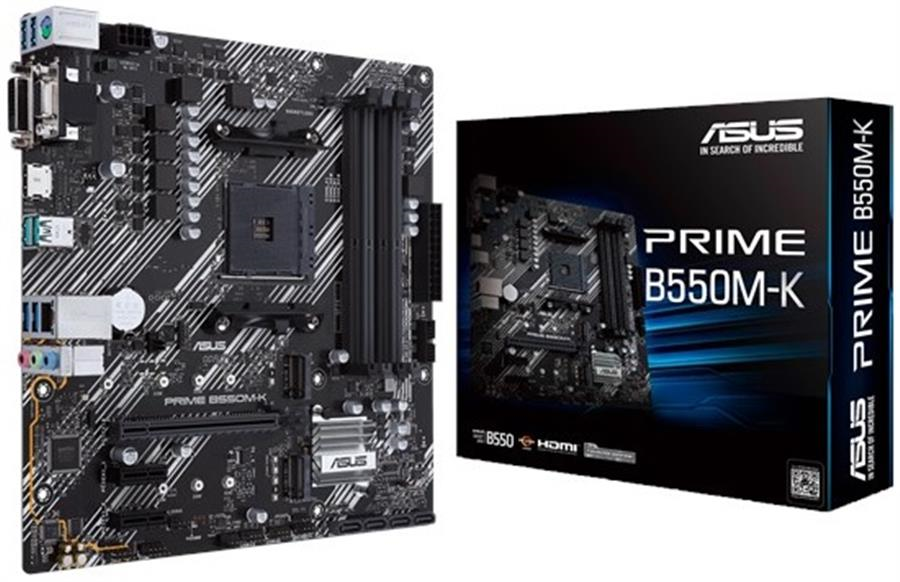

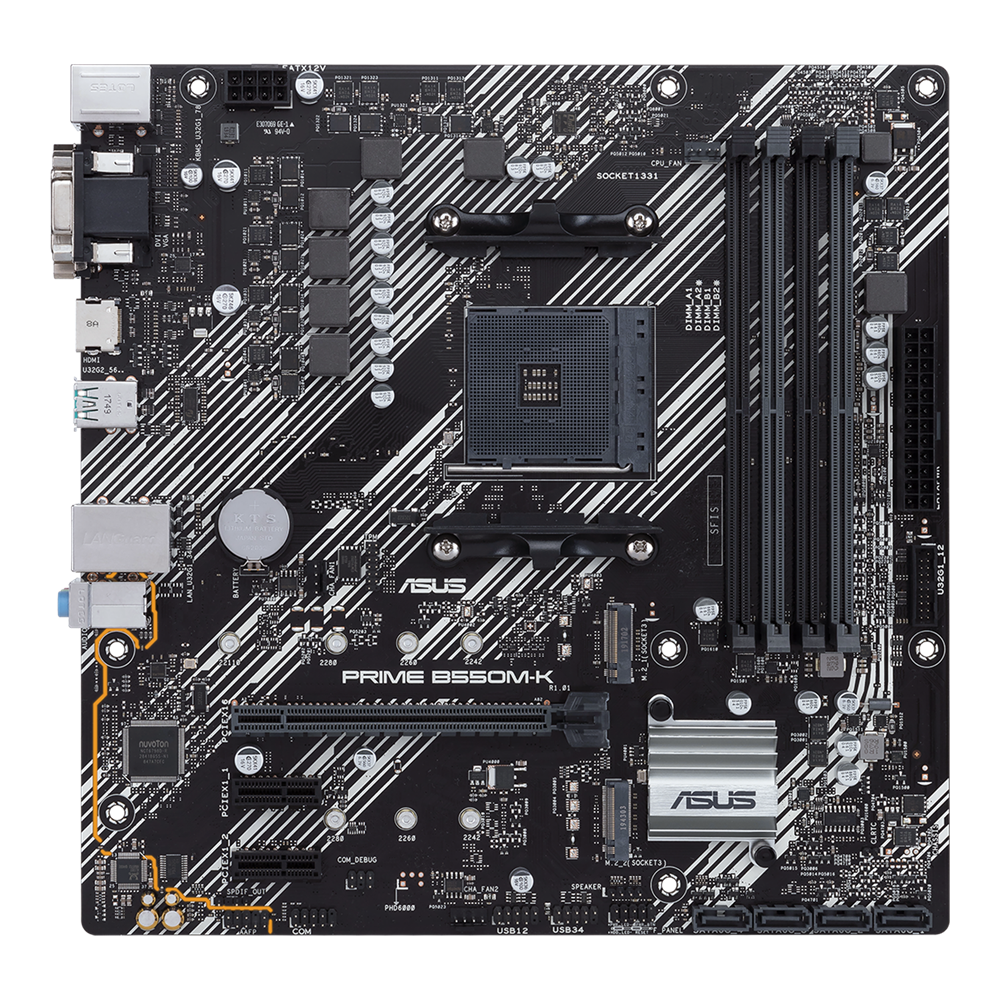

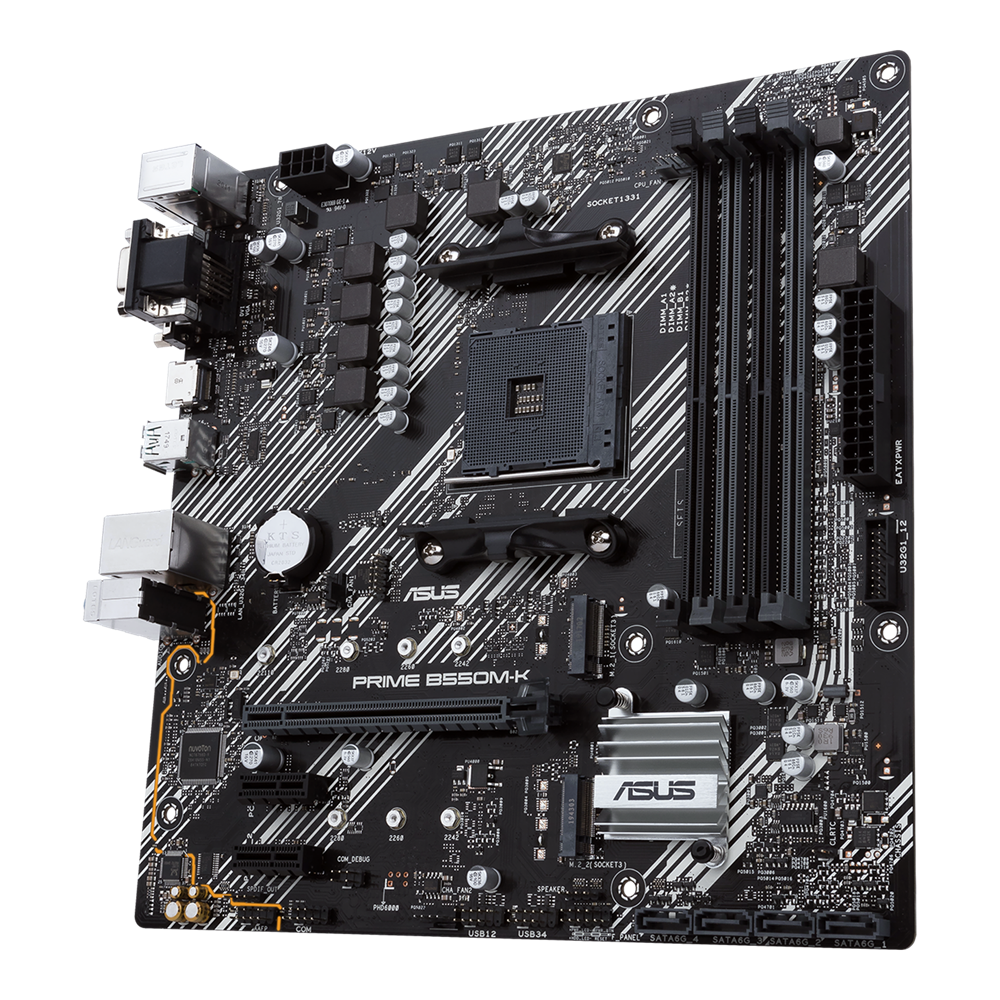

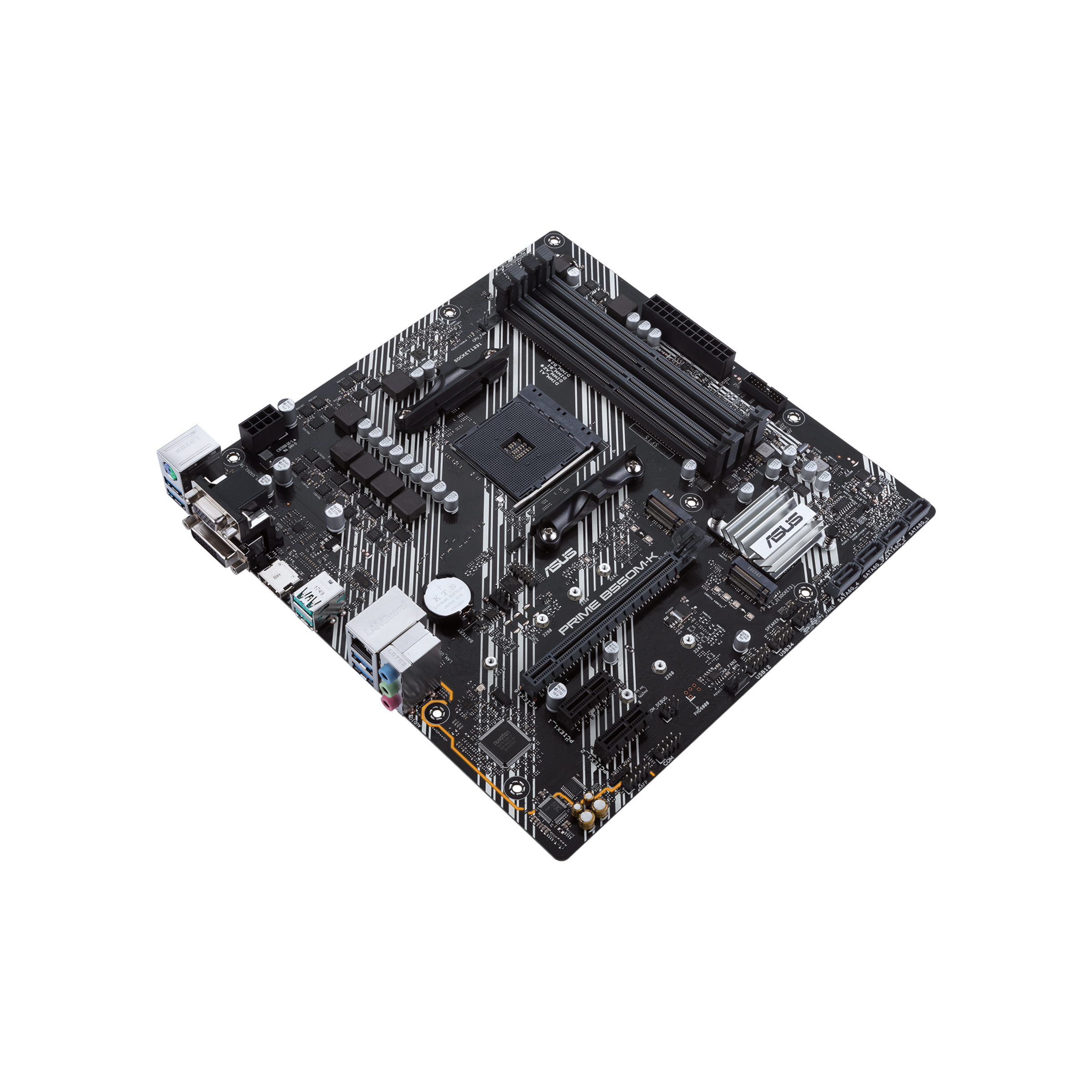

Tarjeta Madre (MoBo) PRIME B550M-K, 4x DIMM DDR4 (Max 128GB RAM), 1x HDMI / 1x DVI-D / 1x VGA, Micro ATX, Socket AMD AM4, ASUS 90MB14V0-M0AAY0

Tarjeta Madre micro ATX AMD B550 (Ryzen AM4) con doble M.2, PCIe 4.0, 1 Gb Ethernet, HDMI / D-Sub / DVI, SATA 6 Gbps, USB 3.2 Gen 2 Tipo-A

-Socket AMD AM4: Listo para procesadores AMD Ryzen™ de tercera generación.
-Enfriamiento completo: Disipador térmico PCH y Fan Xpert 2+.
-Conectividad ultrarrápida: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Tipo-A.,
-5X Protection III: Múltiples protecciones de hardware para una protección integral del sistema.

CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
AMD B550
Memoria
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Salidas de Video
D-SUB (VGA) x1
DVI-D x1
HDMI 2.1 (4K@60HZ) x1
Puertos de Expansión
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset 2 x PCIe 3.0 x1
Almacenamiento
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature :
- LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB
Puertos USB Traseros ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Puertos USB Frontales ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

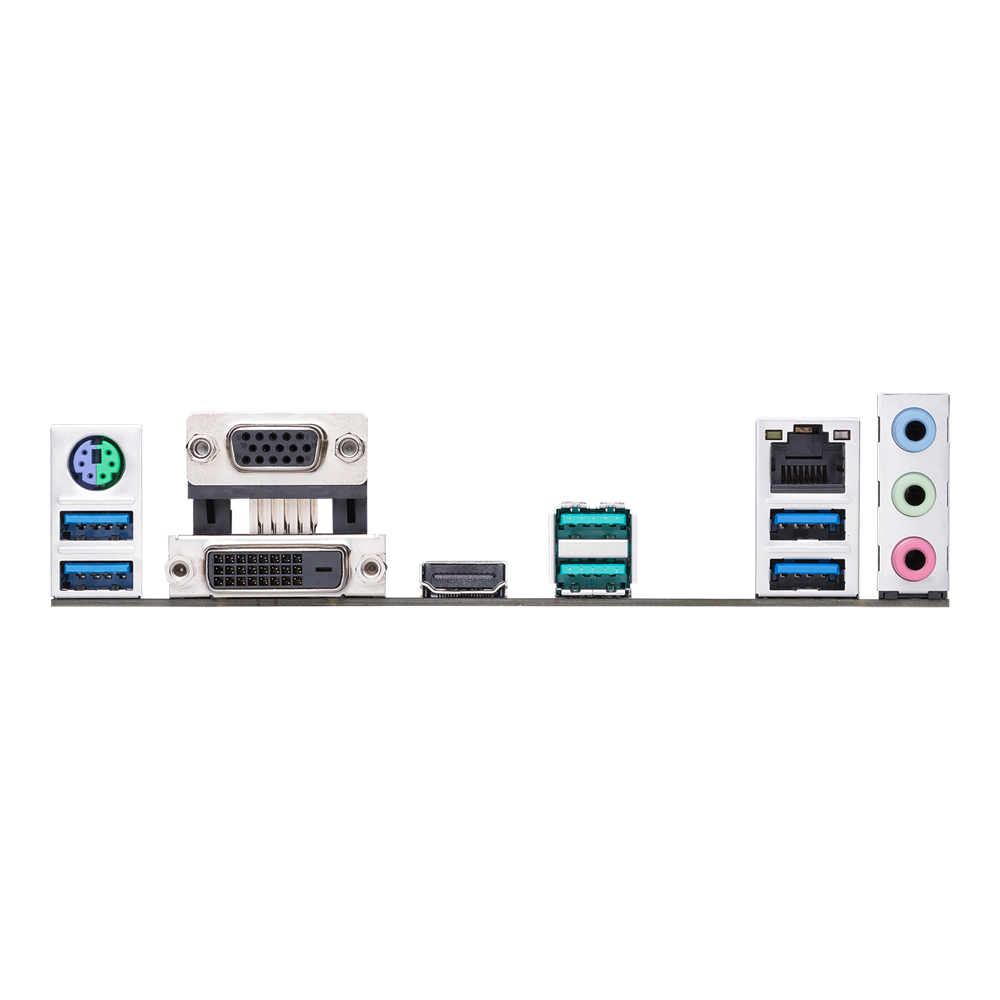

Puertos posteriores (Entrada / Salida)
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s)
Puertos Internos (Entrada / Salida)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header 4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector 1 x COM port header 1 x Speaker connector
Factor de Forma
mATX (24.4 X 24.4 Centímetros
